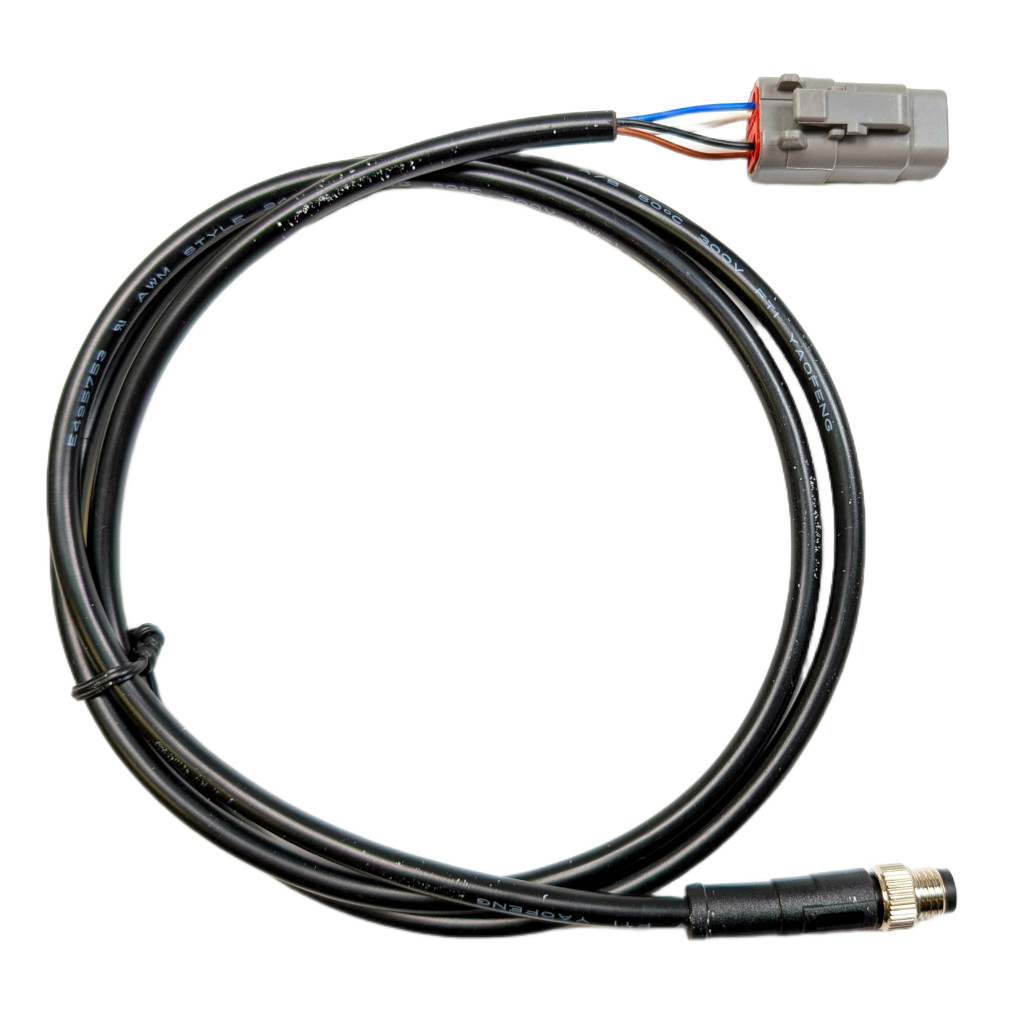

M8 to DTM4 integration cable for MoTeC, Haltech, Link, AEM

Description

Plug and Play CAN bus Integration cable to connect RaceCapture / PodiumConnect to  systems using the DTM4 connector standard, such as MoTeC, Haltech, Link, AEM and other DTM4 systems.

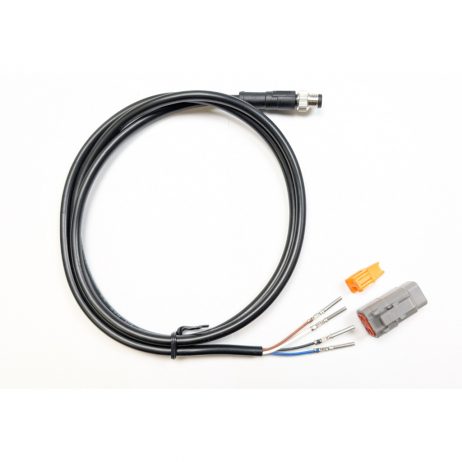

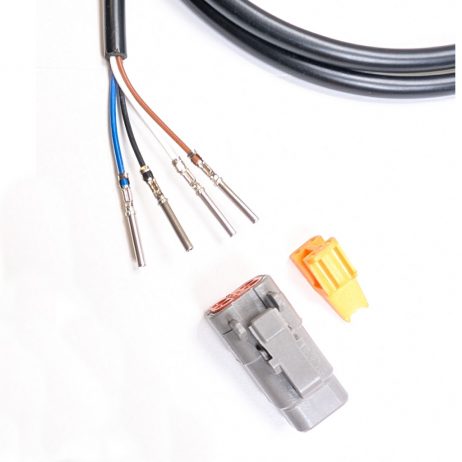

* M8 to DTM female pins
* DTM4 connector housing and retainer clip included
* 1M length

M8 Pinout

White – M8 pin 1 (CAN Low)
Blue – M8 pin 2 (Power)
Brown – M8 pin 3 (CAN High)
Black – M8 pin 4 (Ground)

Common Pin wiring schemes

MoTeC

P1 – Ground
P2 – CAN low
P3 – CAN high
P4 – Power

Haltech

P1 – power
P2 – Ground
P3 – CAN high
P4 – CAN low

Link

P1 – Power
P2 – Ground
P3 – CAN Low
P4 – CAN high

AEM

P1 – CAN high
P2 – CAN low
P3 – Power
P4 – GND
