CAN + power pigtail for device

Description

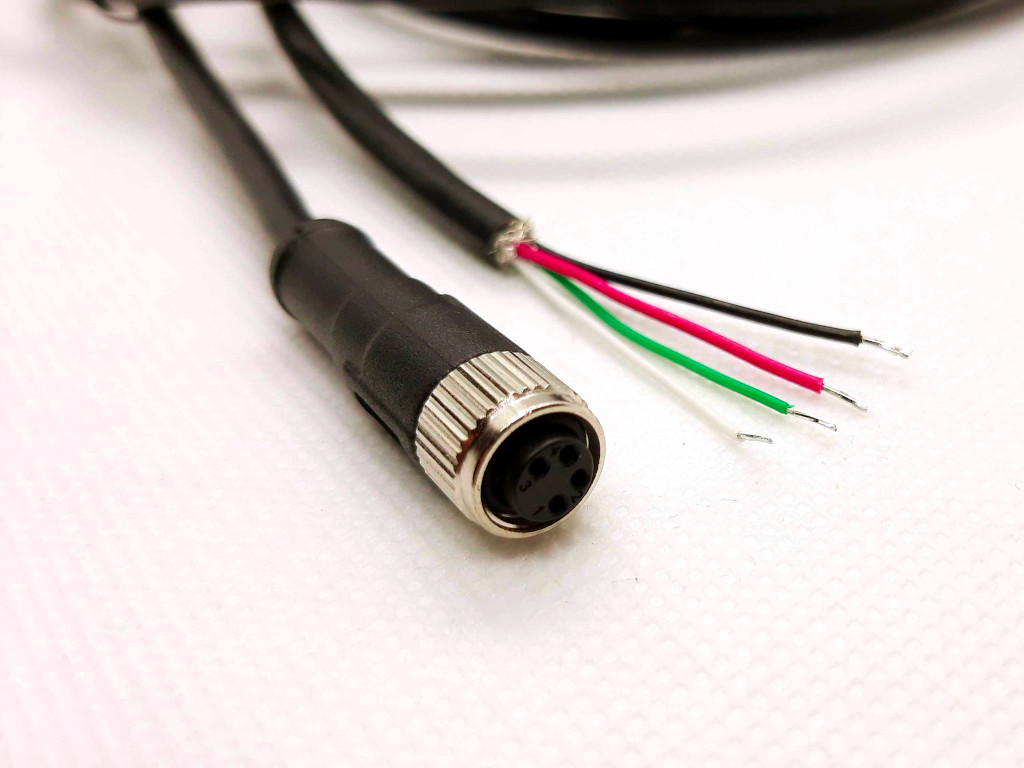

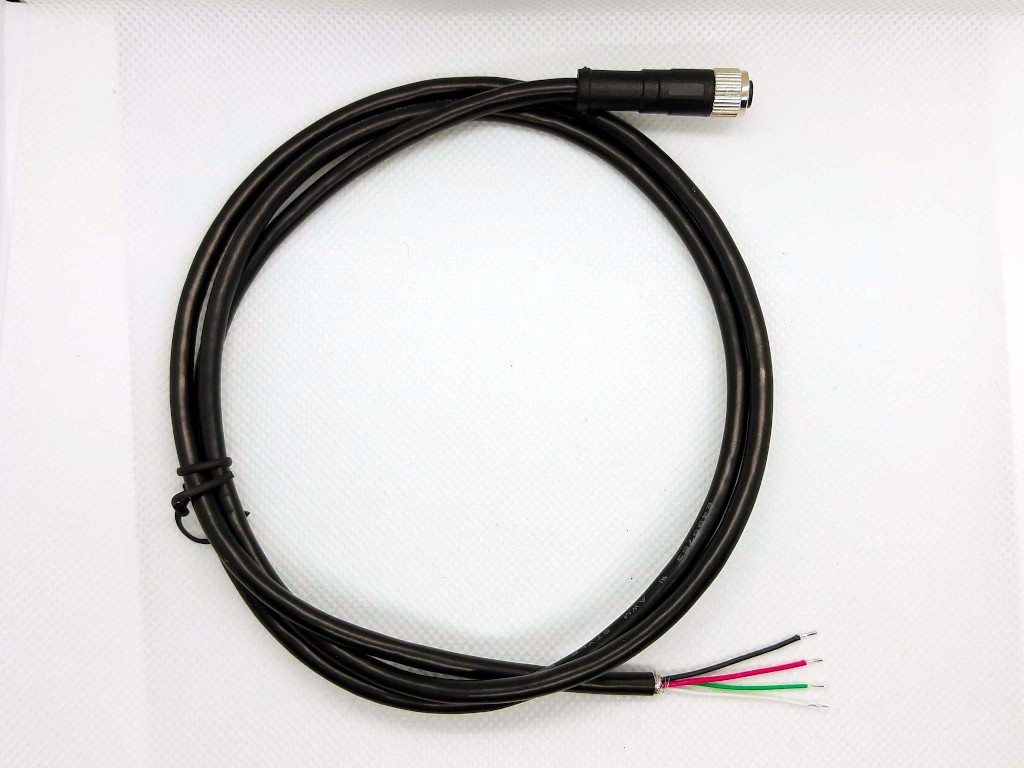

Power + CAN pigtail for custom wiring a CAN-enabled accessory device/sensor, M8 4P female to bare wires, 1 meter.

Used as a bare wire harness for a non plug-and-play installation of a CAN device/sensor, such as AnalogX, TireX, ShiftX3, or similar.

Do not use this cable for connecting to RaceCapture or PodiumConnect. Instead, use the Power+CAN pigtail

• M8 4P Female to tinned / prepared wires
• 1 Meter length
• Pinout:
  • Red / Pin 2: +12v
  • Black / Pin 4: Ground
  • White / Pin 1: CAN Low
  • Green / Pin 3: CAN High

Full Harness Specifications
