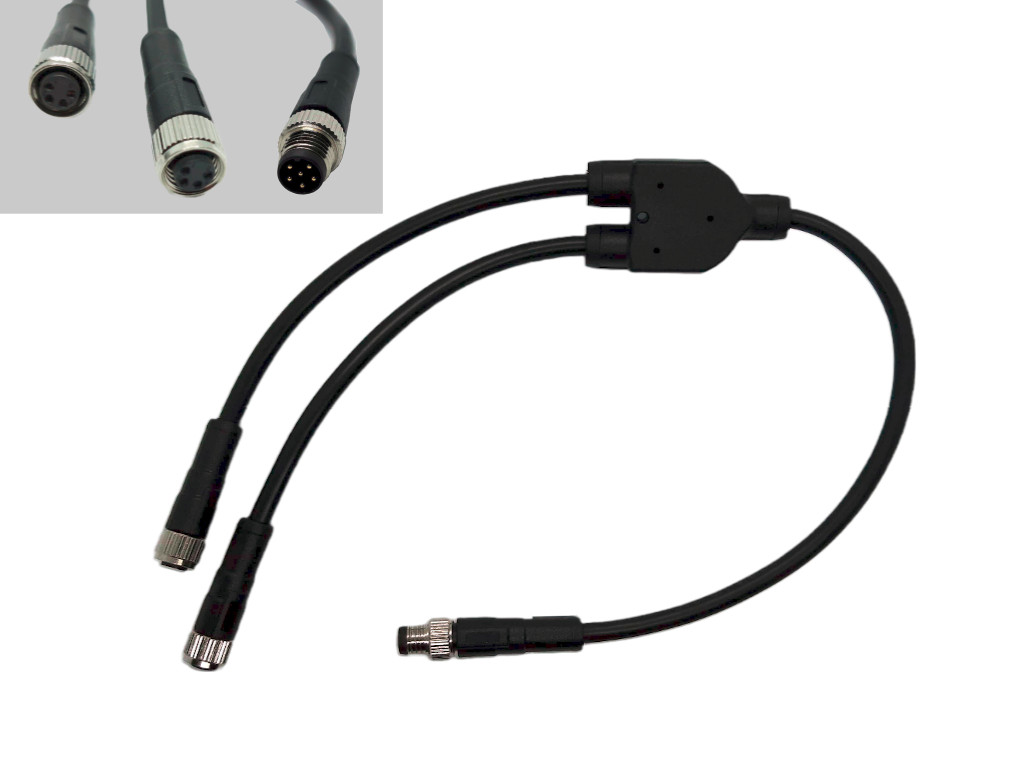

CAN1/CAN2 Dual CAN splitter

$35.95

SKU: ASL_DUAL_CAN_SPLITTER Categories: ,

Description

This interface cable splits two CAN bus networks into individual CAN1 and CAN2 connections.  Plugs into the common CAN1/CAN2 expansion port for:

  • RaceCapture/Pro
  • RaceCapture/Track
  • PodiumConnect

Features:

  • Rugged M8 6P Male for connection to the main system
  • Dual M8 4P female connections for CAN1 and CAN2;
  • Supports up to 1 MB data rate

Each of the CAN connections can be connected to a CAN bus extension cable, a  Power+CAN bus pigtail, or directly into one of our CAN bus enabled sensors and accessories.

Limited power (max 1A @12v total) is passed into the combined CAN1/CAN2 branches for powering attached CAN devices.  For connecting multiple/high-powered CAN devices, we recommend a combination of the Powered 8 port dual CAN bus hub and Dual CAN bus link cable.

Notes:

  • CAN1 connected to branch “A”
  • CAN2 connected to branch “B”

Full Harness Specifications
