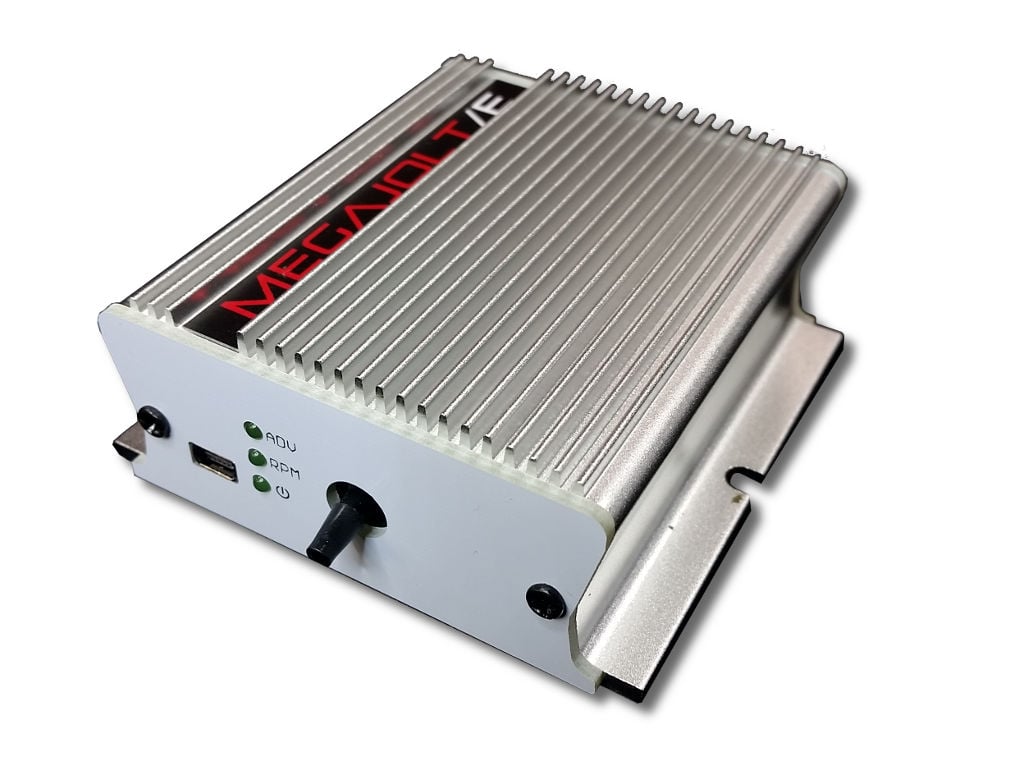

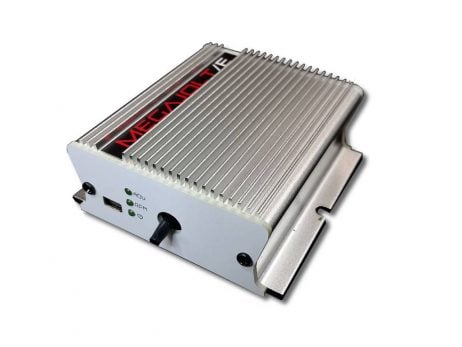

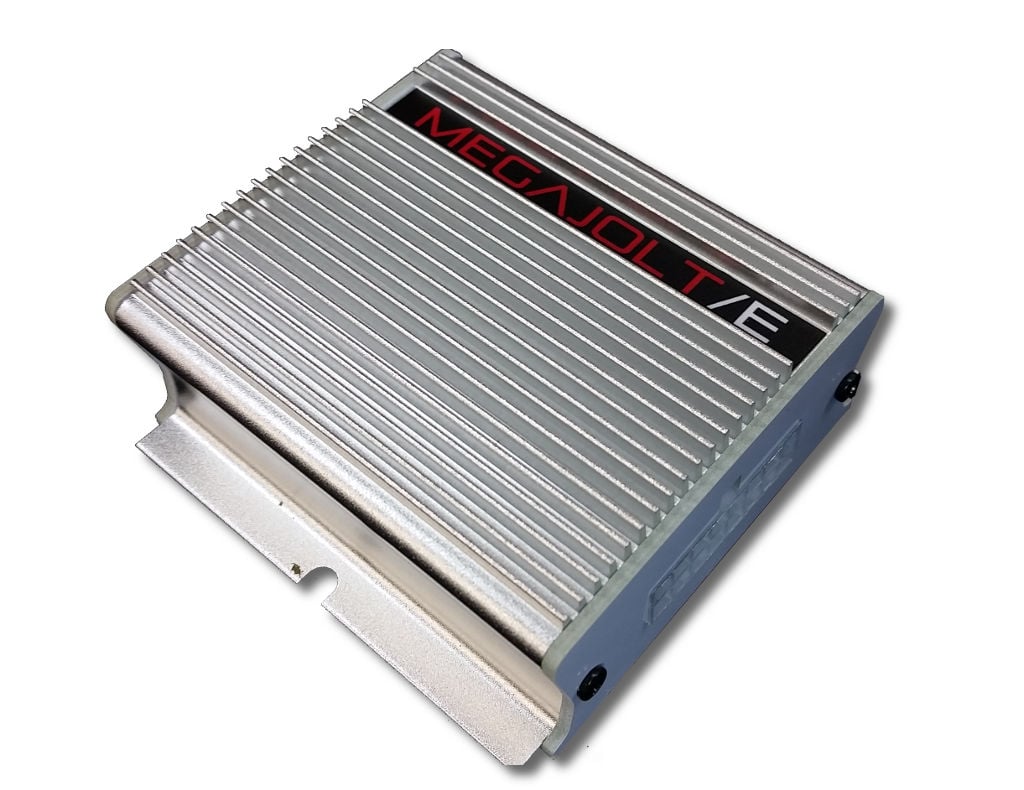

Megajolt/E MK2


Upgrade to Precision, High-Energy and Tunable Crank-Fired Ignition

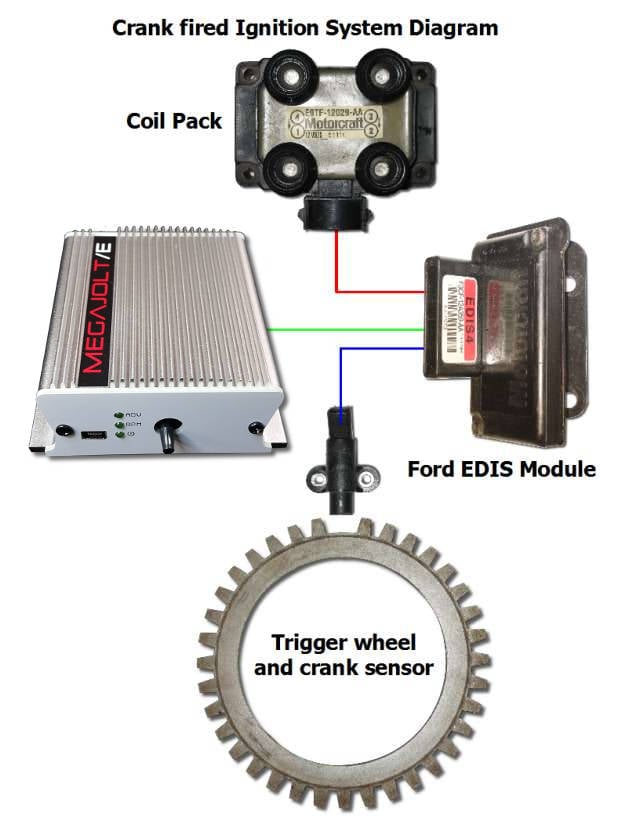

The Megajolt/E is designed to work with the commonly available Ford EDIS 4,6 or 8 cylinder ignition module. Combined with inexpensive and easy to obtain OEM coil pack(s), trigger wheel and crank sensor, (sold separately) you can realize your engine’s potential at a fraction of the cost of other systems.


Improvements in the new Megajolt/E MK2

The new Megajolt/E MK2 has been evolved to add the features you’ve asked for, while making the system more robust and compact:

  • Hard Rev Limiter included!
  • USB interface for ease of use: No drivers needed for Windows 10; easy to install drivers for previous versions of Windows.

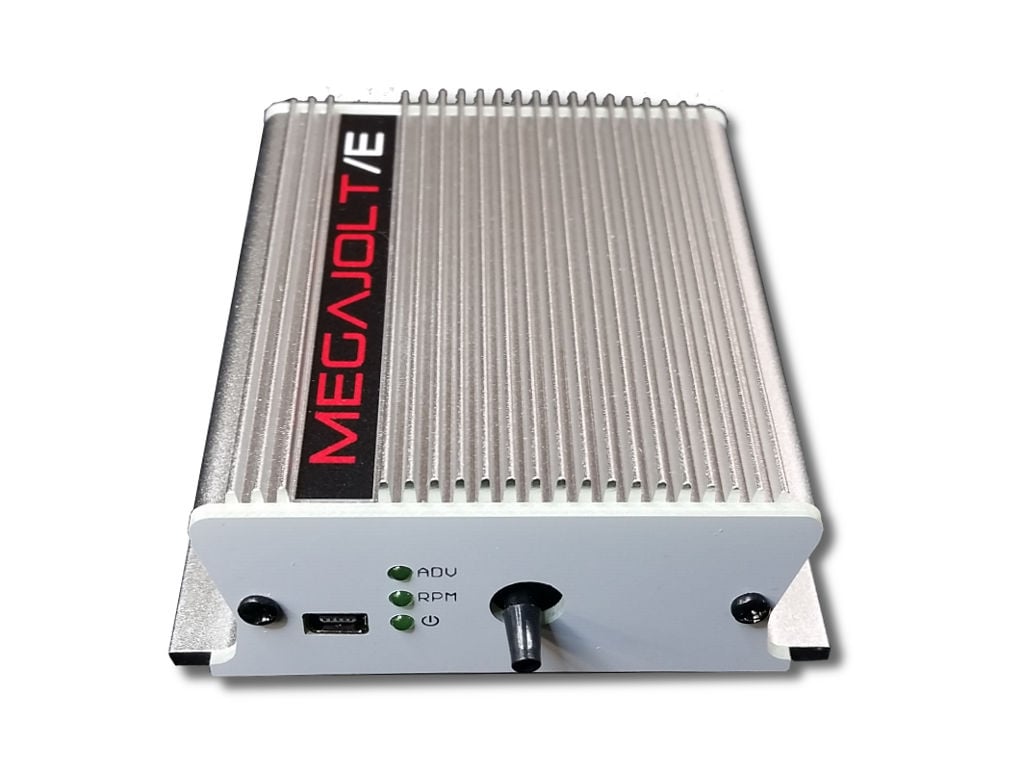

  • Status LEDs for RPM and Ignition Advance signals to aid in diagnostics
  • Improved and ruggedized power supply and enhanced transient protection on inputs
  • More compact: Just 85 x 85mm
  • 100% compatible with previous generation Megajolt/E and Megajolt Lite Jr V4 – drops right in!


Trigger wheel, coil pack, EDIS module sold separately

Major Features:

  • 3D ignition mapping: 10×10 ignition advance grid with full linear interpolation smoothing between cells
  • On-board 2.5 bar MAP sensor with MAP sensor option (TPS option requires external TPS, not included)
  • Dual, on-the-fly switchable ignition configuration
  • Analog auxiliary input to further adjust ignition advance
  • Four user-defined output switches, which trigger on RPM, Load or Auxiliary input, plus shift light output

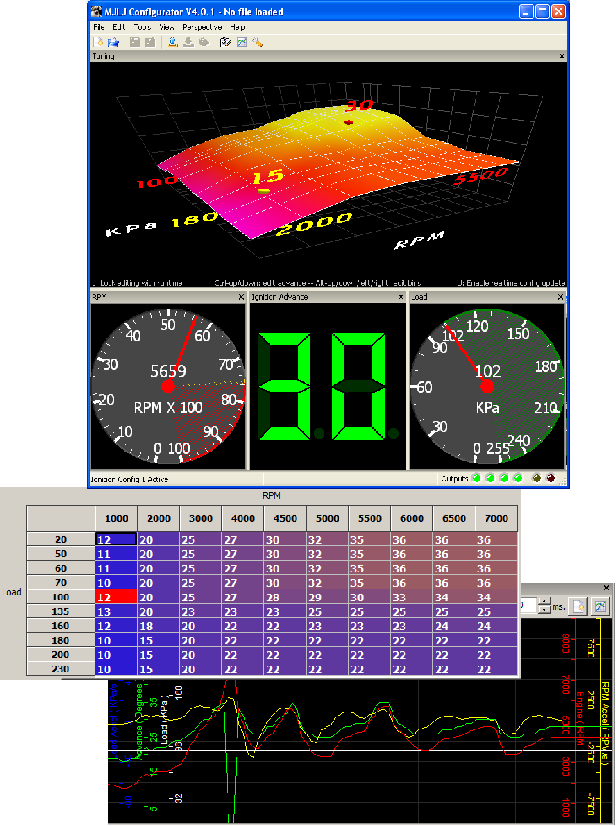

  • Modern, easy to use, and customizable Windows-based Configuration/Tuning software Screenshots
  • 1000’s of satisfied users worldwide- see our “Powered By” Gallery!



What’s in the box

  • Megajolt/E controller (fully assembled and tested)
  • USB tuning cable
  • Molex Plug and pin set for your harness (you crimp your wires to pins)

More Information

Additional information

Load Sensing Option

Include 2.5 Bar Manifold Pressure Sensor, Throttle Position Sensor (TPS) Input
