PodiumConnect

$399.95$462.85 $349.95$412.85

This item will be shipped on February 15, 2018.
Clear

Product Description

The Race Data revolution is here

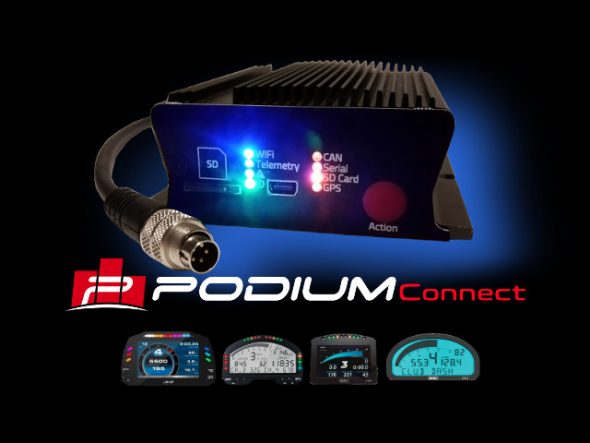

podiumconnect_with_data_systems_black

Now you can live-stream AiM, MoTeC, Race Technology, and more to Podium

Live-stream your racing to Podium, the social network where you can do real-time analysis on engine, chassis, and driver performance. Share and compare your laps with crew, friends, race coaches, and fans around the world.

Compatible with AiM, MoTeC, Race Technology, and more

Revolutionary Technology

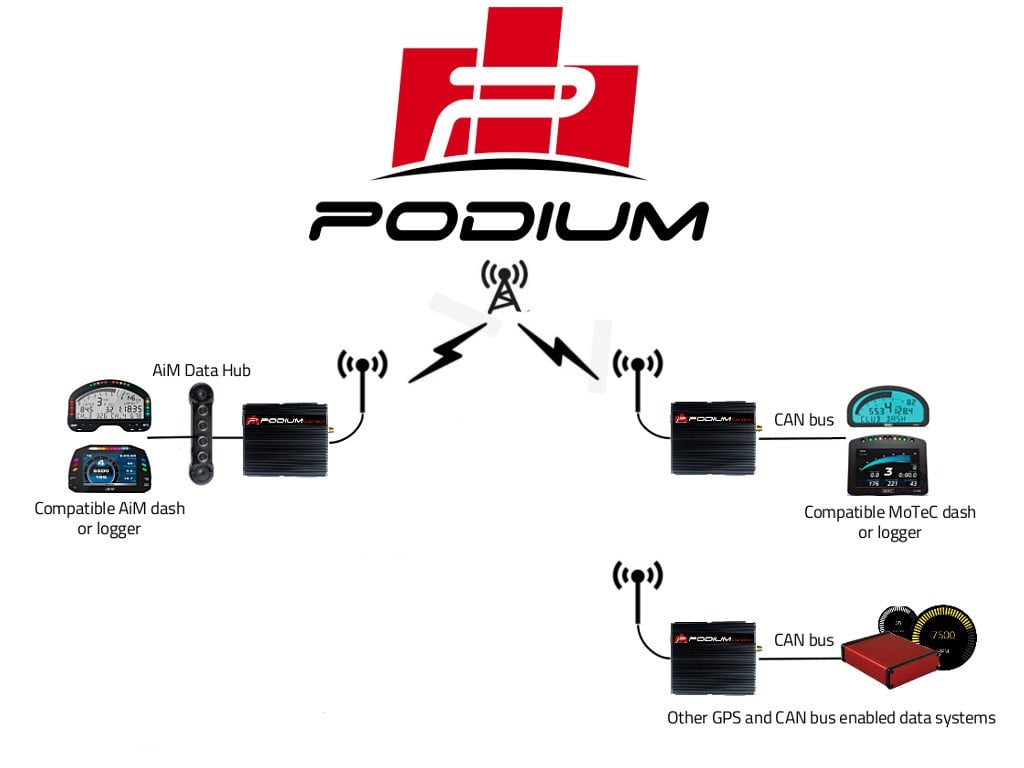

Set your data free! Using cellular-based telemetry, PodiumConnect brings together different data systems in a powerful way. Easily compare laps between AiM, MoTeC, Race Technology, and other GPS-enabled data systems, all in the cloud, and in real-time.

podiumconnect_aim_motec_racetechnology_integrations

cellular_iconLive-stream telemetry – for free!

High performance and super responsive

With PodiumConnect’s on-board 3.5G cellular you’ll get up to 10Hz streaming and fast response while viewing your telemetry. Amazing!

Stream for free

freedompop

We have partnered with FreedomPop to provide a special plan for PodiumConnect owners in the USA, starting with 500MB/month for free and no contract! Just add the FreedomPop SIM card option when buying.

Data Price/Month
500MB FREE
1GB $9.99
2GB $19.99

How much telemetry does that give you? Here are a few examples for a reasonable load of 32 channels at a mix of 1/5/10Hz:

Length of Race Approximate usage
4 hours 30MB
17 hours 130MB
24 hours 183MB

The built-in worldwide 3.5G module also works with any GSM carrier, including:

Country Carrier
USA AT&T, T-Mobile, FreedomPop
UK Vodaphone, O2, Tesco, Three
EU Vodaphone, Lycamobile
Australia Telstra, Vodaphone
Canada Rogers
Brazil Claro, Vivo



Powerful, instant analysis – no need to transfer files

Now you have no files to transfer and no data cables to connect: your data streams in real-time to Podium where it can be reviewed by race coaches, monitored by your pit crew, or broadcast to fans around the world, right now! Uncover what will make a difference in your driving or car performance during your race or practice, while still on track.

Powerful time-gap analysis

Compare laps in real time and see where on track you’re falling behind or gaining time – race coaches will love the ability to tune the nut behind the wheel while the driver is on track – no need for off-line “data download” classrooms!

Compare your laps between friends and sessions

Regardless of the system your friends are using, you’ll be able to compare lap times, sensors, GPS position, driving line and more using the powerful tools available on Podium – across many laps or just one:

Follow and be followed by your favorite racers

Follow other racers, view their laps, and get notified when they’re on track. Then, compare their laps to yours. What are their racing secrets?

podium_hero

Claim the top lap time at your favorite race track

See who else is running at your favorite tracks. Compare the laps they’ve shared and see where you stack up!

summit_point_top_laptimes



Add an auxiliary dash

Use the powerful RaceCapture app to create a secondary dashboard to show additional sensor data, plus enable pit-to-car alerts*!

Download the RaceCapture app from Google Play, iTunes or the Amazon app store.

Supplemental Gauges

Customize the dashboard screen to show custom gauges and advanced visualizations, including a tire temperature heatmap!

Pit-to-car alerts

Enable pit-to-car alerts* to get the attention of your driver. Great for endurance racing!

Stream up to 100 sensor channels

Two CAN 2.0 compliant busses let you connect your compatible AiM or MoTeC or other system, in addition to any sensor network you have on your race car.

If it’s CAN enabled, we can read it! Here are some examples:

  • High performance GPS from your existing data system
  • G-forces and gyro data from your existing data system
  • Calculated predictive lap times
  • Multi-zone tire temperature sensors
  • TPMS sensors
  • Engine sensors such as oil pressure, engine temperature, RPM, throttle position, and more
  • Thermocouple arrays
  • Aero / Strain gauges
  • Ride height sensors
  • Driver input such as steering angle and brake pressure
  • Bio-sensors such as heart rate and body temperature

Easy to use presets

It’s simple to map CAN channels from data systems such as AiM, MoTeC and others, or map high performance ECUs such as AEM, Hondata, Emtron, Haltech, PE3, Link G4, Megasquirt and more. Or, connect to OBDII and OEM CAN bus networks like the BMW E46 or Porsche – all at the touch of a button.

No CAN bus? If your system streams data over RS232, like the RaceTechnology DL1 and DL2, we can connect to that as well.

Compatible with AiM

aim_podium_connect_integration

PodiumConnect works with your GPS-enabled Smarty Cam compatible AIM systems, including:

  • MXL/ MXL2 Dashboards
  • MGX, MXS Dashboards
  • EVO4/5 Loggers
  • Solo2 DL
  • AiM Pista dashboards

…and more! Plug right into your data hub with the included cable and live-stream GPS, G-forces, lap times, engine sensors and more.

Compatible with MoTeC

motec_podium_connect_integration

PodiumConnect works with nearly every MoTeC dash, logger and ECU, including:

  • ADL dash / logger displays
  • M8XX/M1XX series ECUs
  • C series and D-Series dashboards

Simply connect two wires, select a pre-set CAN bus configuration and you’re good to go – live-stream GPS, G-forces, lap times, engine sensors and more.

Compatible with Race Technology

racetechnology_podium_connect_integration

PodiumConnect works with the GPS-enabled Race Technology DL1 and DL2 loggers, and connects to the standard serial data port for access to all of the available channels.

Got a different system? Talk to us – it will likely work!

If it supports broadcasting GPS + sensor data over CAN or RS232, PodiumConnect can handle it. Just tell us what you have and we can help.

No data system?

If you don’t have a data system – good news, we have you covered: Check out the RaceCapture line of full-featured telemetry systems!

Additional Capabilities

WifiWiFi connectivity

Configure and manage without connecting a cable: PodiumConnect is equipped with WiFi connectivity for wireless management and configuration.



gopro GoPro Camera Control

PodiumConnect can control a WiFi-enabled GoPro camera, triggering it from one of your data channels – like Speed or RPM – automatically starting your camera when you’re ready to race.

racecapture_gopro_camera_control

More cameras will be supported in the future, such as models from Sony and the Xiaomi Yi.

sd_card_iconLocal SD logging

An SD card slot is provided for local data recording – great for importing into external analysis and visualization tools like RaceRender and more.

Compact, lightweight and rugged

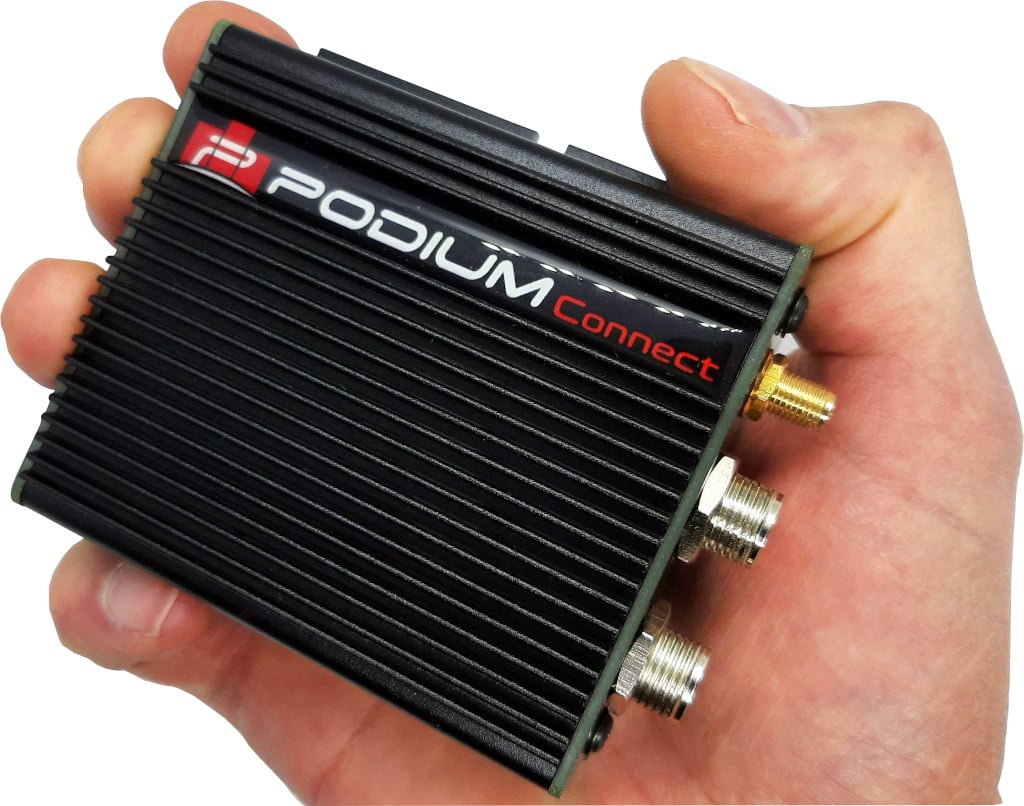

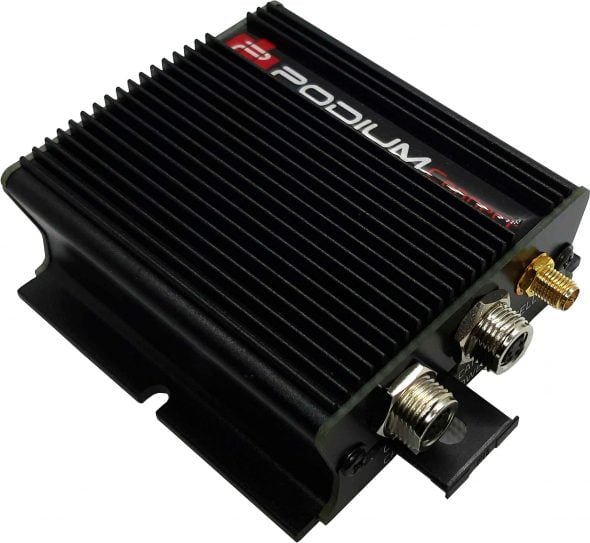

At only 85 x 85 x 36mm (3.35 x 3.35 x 1.41in) and 170g (6oz) it’s easy to install and conserves precious weight.

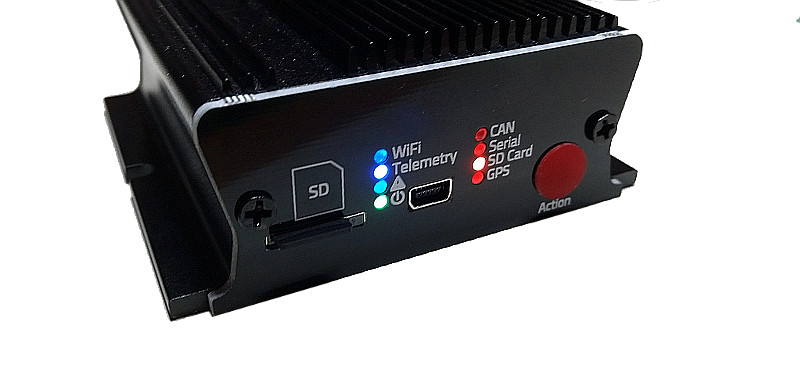

Comprehensive status indicators

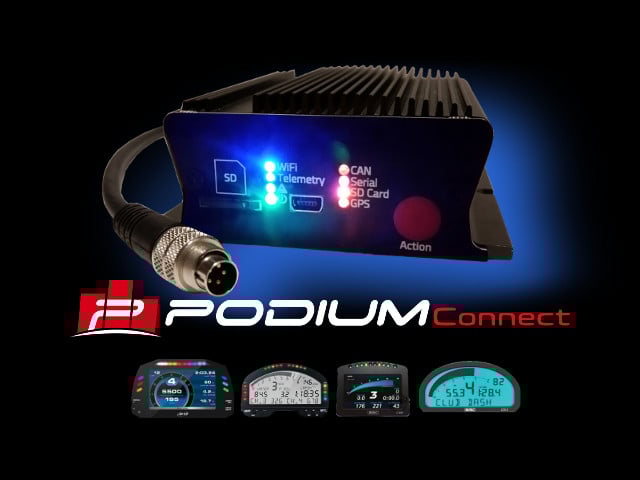

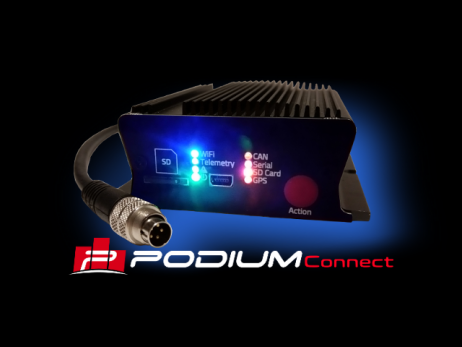

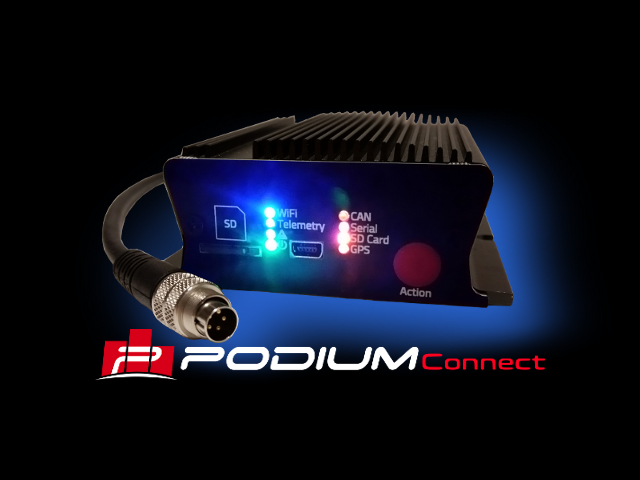

Indicators for WiFi, Telemetry, CAN and Serial communications are provided on the front for quick status at a glance.

podiumconnect_leds

Just one cable to connect to your data system

It’s easy to set up. Just:

  • Connect one cable to your existing data system

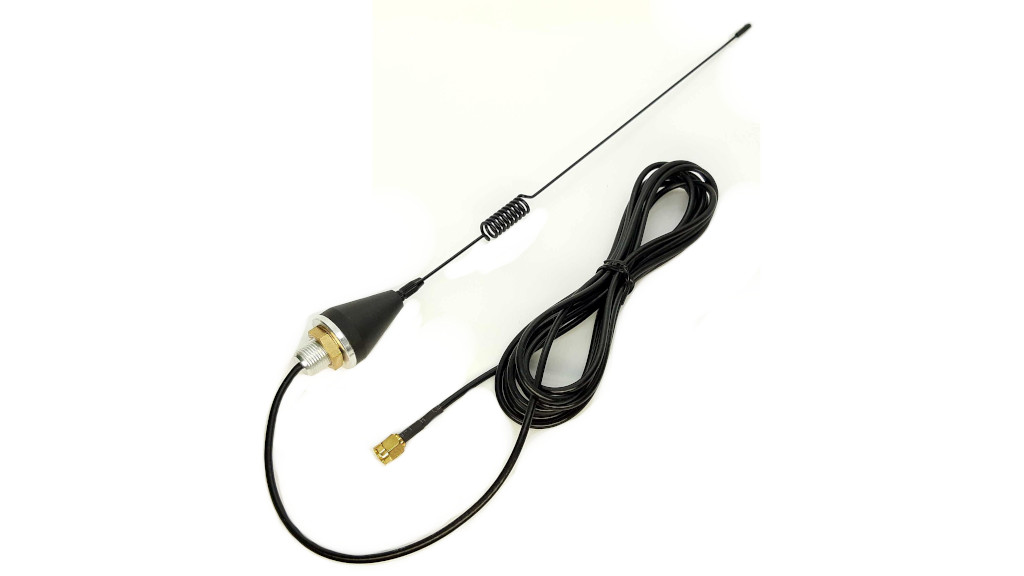

  • Mount the included antenna
  • Insert your SIM card

podiumconnect_sim_card

Full Specifications

Features marked with * will be available Winter 2018

Analog Inputs
Channels Battery Voltage (Internally connected) (0-20v)
CAN Bus
CAN Channels 2
CAN baud rate 125K, 250K, 500K, 1M Baud
CAN filters 14 per channel
Protocol Support OBDII PID, custom CAN mapping
CAN Bus CAN 2.0 compatible, 1M baud
CAN termination Software controlled
CAN channels supported 100
Serial
Aux Serial RS232
Max Baud Rate 230400
Cellular Telemetry (Optional)
Cellular 3.5G GSM worldwide compatible
Maximum Sample Rate 10Hz (1/5/10Hz supported)
Wireless
WiFi 802.11bgn
WiFi Modes Access Point, Infrastructure
Maximum Sample Rate (dashboard link) 50Hz
Storage
Micro SD Up to 32GB (SDHC)
Maximum Sample Rate 100Hz
Predictive Lap Timing Built-in
Track Mapping Circut and point-point
Track maps 200 built in for autonomous auto-detection
Sectors per track 20
Analysis Included in the RaceCapture App, and on Podium
Export data format Plain CSV (RaceRender compatible)
Scripting / Customization
Real-time virtual (math) channels / custom channel mapping Via on-board Lua scripting
Virtual Channels 100
Physical
Dimensions 85 x 85 x 36mm (3.35 x 3.35 x 1.41in)
Temperature range -40 to 85c
Environmental IP50 rated
Weight 170g (6 oz)
Physical Molex Connector, 8 pins
SMA for cellular module
Power Consumption (max) Main System: 0.6W
With Wireless: 1.6W
With Cellular Telemetry: 8.6W
With Cellular Telemetry and Wireless active: 9.6W

Notice

AiM, MoTeC, Race Technology and GoPro are trademarks or registered trademarks of their respective holders. Any references to these trademarks does not imply any affiliation or endorsement.

Additional Information

Include SIM Card

Include FreedomPop SIM (USA), No SIM card

Harness Type

AiM SmartyCam, MoTeC C125/CDL3 Deutsch 6 pin, Race Technology DL1/DL2, Generic Harness/flying leads
