Description

Save $75 off with pre-order pricing! Shipping starts April 28



Real-time telemetry for your ECUMaster, AIM, MoTeC, VBOX, Lowrance, or other data system



Live-stream your race and use the real-time strategy features to help you win

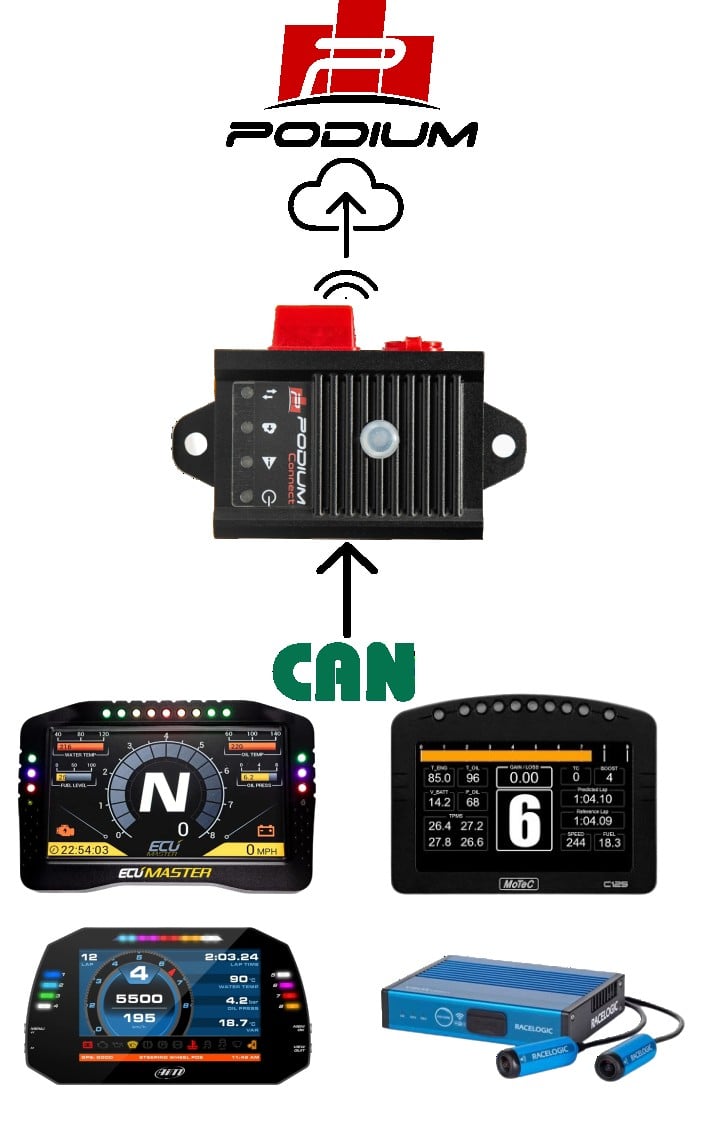

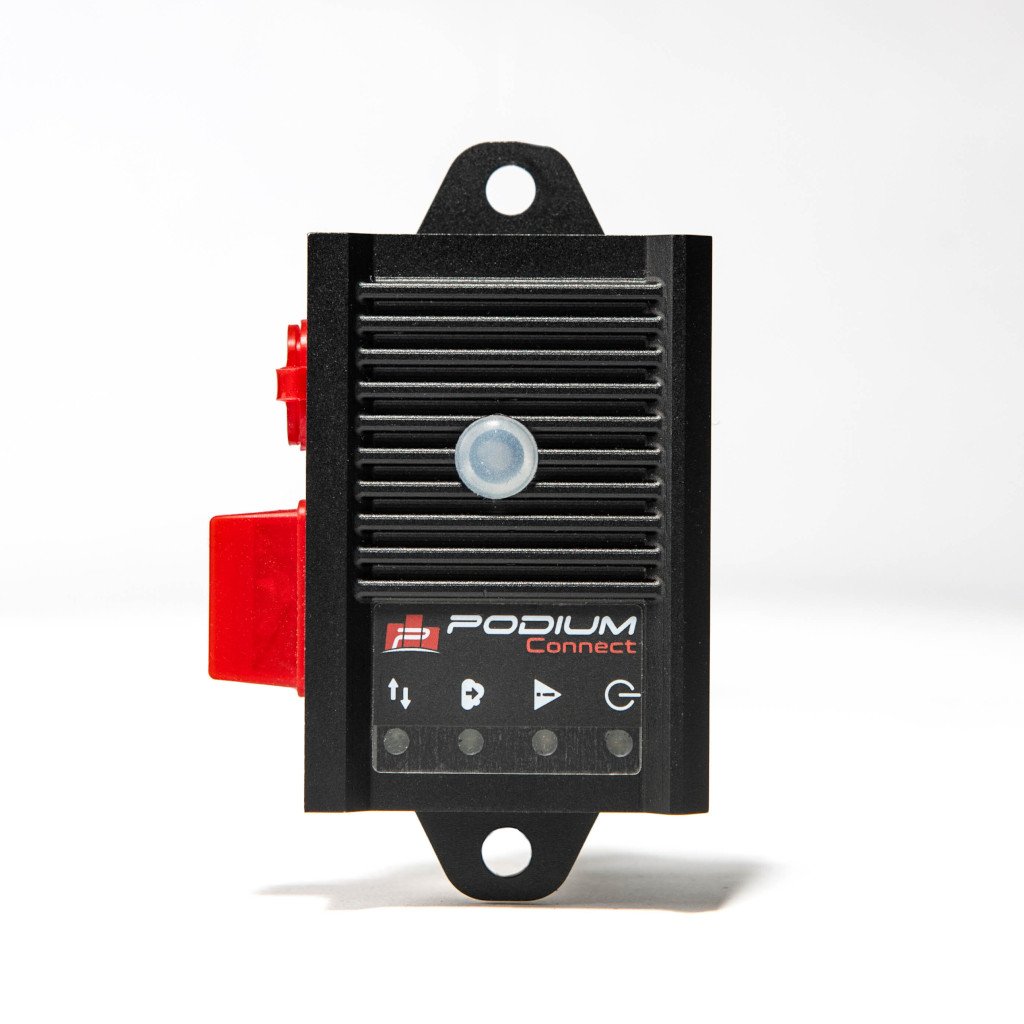

Use PodiumConnect to send real-time telemetry to Podium from your existing data acquisition system. Compatible with ECUMaster, AIM, MoTeC, VBOX, Lowrance, and many other CAN-enabled data systems.





Works with your hotspot or satellite internet, such as Starlink

The WiFi telemetry connection ensures world-wide connectivity – just use an in-car hotspot you provide.  Works with a cellular hotspot or satellite based internet, such as Starlink mini and similar networks.

Real-time racing strategy

Reviewing data after the race is old-school. Use real-time data to make a difference during the race, when it matters!

Monitor Engine vitals

Catch emerging issues before they become costly race-ending failures. Keep an eye on Engine Temperature, Oil Temperature, Oil Pressure, Battery voltage, Transmission Temperature, Coolant Pressure, Tire Pressure, Fuel Pressure – any sensor available from your ECU and other sources.

You can also configure your Podium app to get alerts on these sensors in the pit, and after the race you can review historical data to see where and when the problem happened, correlated with position on track and other sensor data.

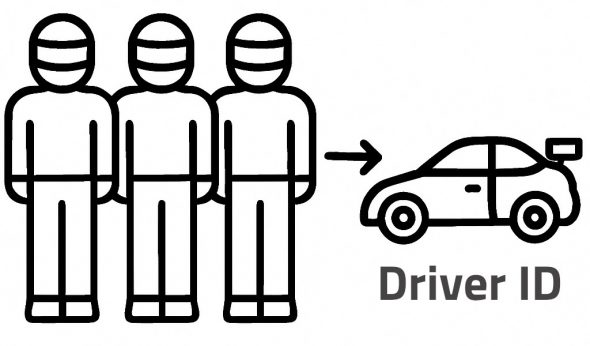

Track which driver is in the car

Use a compatible Bluetooth device (sold separately) to track which driver is in the car.  The Driver ID shows up in the telemetry data, making it easy to identify who’s driving, making it easy to compare laps and data between team members.



How it works: each driver has a Bluetooth device on their person – such as a Bluetooth tag or wrist mounted heart rate monitor. PodiumConnect will detect which device is present in the cockpit of the vehicle and assign the current driver to the current telemetry stream.

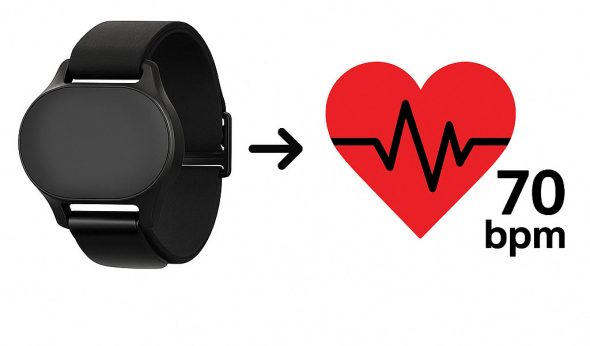

Get heart rate with compatible heart rate monitor

If you’re using a compatible heart rate sensor (sold separately) you will get heart rate as a bonus telemetry channel in addition to Driver ID!

Chassis Development

With compatible sensors such as the TireX tire temperature sensors, GForce, and Gyro sensors you can plan changes to your suspension while the car is on track, for fast turn-arounds.

Real-time driver coaching

Coach your driver in real-time, selecting a reference lap against a live lap (green). Post-event “download and review” sessions are old-school and obsolete!

You can also perform valuable time-gap analysis to see where time is gained or lost, as soon as the data is livestreamed to Podium.

Compare and share data

Use Podium to effortlessly compare and share laps with your team, your past events, and even other racers

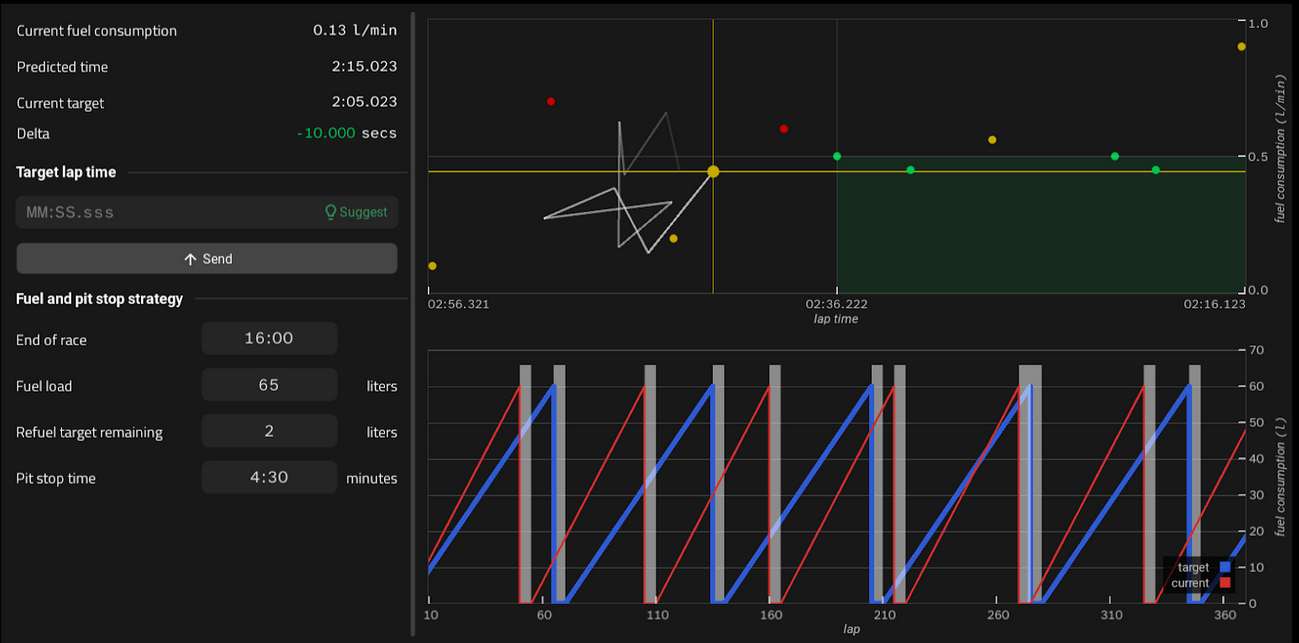

Endurance Racing strategy features

Podium offers enhanced endurance racing strategy tools (Pro subscription plan required) to track fuel consumption for optimal lap time and fuel strategy so you can plan your pit stops with precision.  Avoid late and time-consuming fuel stops that will cost you the race win!



Stream up to 100 sensor channels

A CAN 2.0 compliant interface let you connect your compatible AIM, MoTeC, VBOX, Lowrance, or other CAN-enabled data systems to live-stream sensor data. Here are some examples:

• High performance GPS from your existing data system
• Speed data
• G-forces and gyro data from your existing data system
• Multi-zone tire temperature sensors
• TPMS sensors
• Engine sensors such as oil pressure, engine temperature, RPM, throttle position, and more
• Thermocouple arrays
• Aero / Strain gauges
• Ride height sensors
• Driver input such as steering angle and brake pressure

Built-in lap timing calculations

PodiumConnect automatically calculates predictive lap timing, including tracking best lap for tracking purposes.

GoPro camera control

PodiumConnect can control your GoPro Camera (supported up to GoPro7) for automatic start/stop of video recording

Easy to use presets

It’s simple to map CAN data channels from a variety of sources:

• Data systems such as ECUMaster, AIM, MoTeC, VBOX, Lowrance, and other stytems
• OEM CAN bus networks such as BMW E46, Porsche, Miata, GM-LAN, and more.
• ECU data directly from AEM, Hondata, Emtron, Link, Haltech, PE3, Megasquirt, and more
• Connect sensor networks such as the TireX tire temperature sensors

All at the touch of a button!

Single cable for connectivity

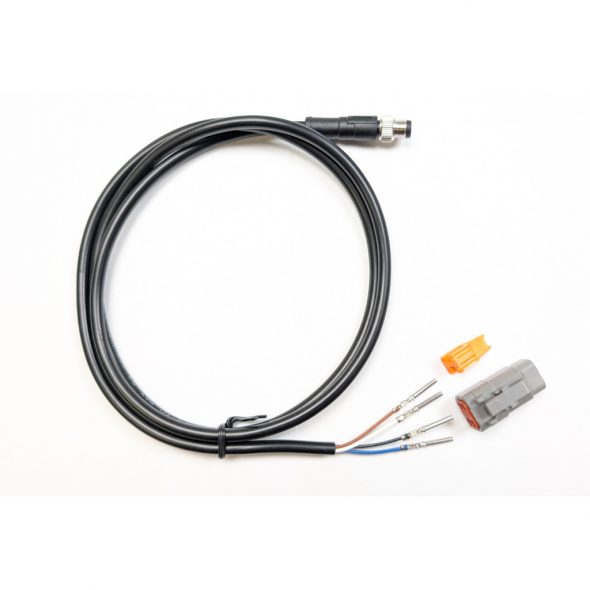

Just connect Power, ground, and the data connection to your data acquisition system, then run the setup wizard to get started!

Plug and Play for AIM

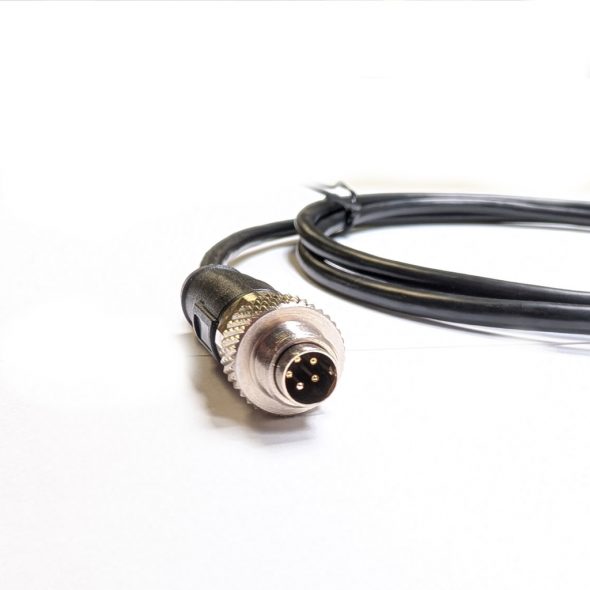

Our AIM variant has a plug and play option for the AIM hub, using the AIM standard 5 pin Binder connection.

Specifications

Analog Inputs
Channels	1 (Battery Voltage, Internally connected (0-20v))
CAN Bus
CAN Channels	1
CAN baud rate	125K, 250K, 500K, 1M Baud
Protocol Support	OBDII PID, custom CAN mapping
CAN Bus	CAN 2.0 compatible
CAN termination	Software controlled
CAN channels supported	100
Telemetry connection
WiFi	Connect to your provided hotspot (cellular or satellite internet)
Maximum Telemetry Sample Rate	10Hz (1/5/10Hz supported)
Wireless
WiFi	802.11bgn
WiFi Modes	Access Point, Infrastructure
Maximum Sample Rate (link to dashboard)	50Hz
Storage
Onboard SD	Minimum 2GB
Maximum Sample Rate to SD	100Hz
Predictive Lap Timing	Built-in
Track Mapping	Circut and point-point
Track maps	Built database in for auto-detection
Sectors per track	20
Analysis	Local analysis via the RaceCapture app and online with Podium
Export data format	Plain CSV
Scripting / Customization
Real-time virtual (math) channels / custom channel mapping	Via on-board Lua scripting
Virtual Channels	100
Physical
Dimensions	94 x 61 x 16mm (3.7 x 2.4 x 0.63in)
Temperature range	0 to 65c
Environmental	IP65 rated
Weight	100g (3.6 oz)
Connections	M8 Connector, 4 pins (CAN1 and power)
Power Consumption (max)	0.6W

Notice

AiM, MoTeC,  ECUMaster, VBOX, Lowrance are trademarks or registered trademarks of their respective holders. Any references to these trademarks does not imply any affiliation or endorsement.
