Description
Next generation of data, telemetry, and control – now with 4G LTE telemetry option!

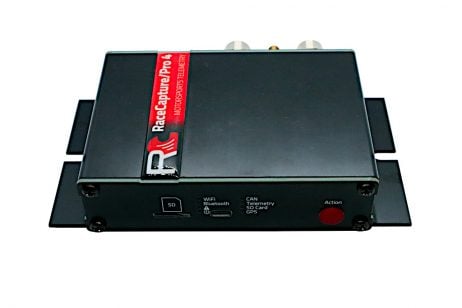

Your time on track matters and you want to maximize every minute and dollar toward tuning the engine, honing your racecraft, or finding that extra edge over your competition. As motorsports evolves, so should motorsports telemetry technology: more real-time, extending your reach to the people who matter. Showing you what you need while you’re still at the track, so you can make changes and adapt now, not later. Autosport Labs’ new RaceCapture/Pro MK3 brings flexible data acquisition, predictive lap timing, real-time telemetry, and control to your race car.

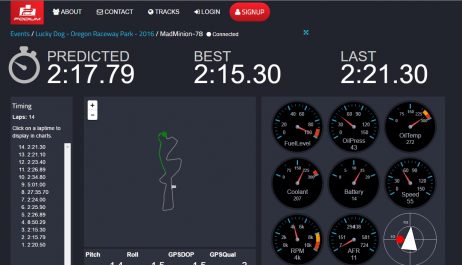

Live streaming to Podium
Live-stream your racing to Podium, where you can perform real-time analysis on engine, chassis and driver performance. Share and compare your laps with friends, colleagues, and race coaches around the world. Learn more at https://podium.live
Rugged, plug and play wiring and sensor connections
Connecting sensors is super easy with no crimping, splicing, soldering, heat shrink – just plug everything together like LEGOs!
See our plug and play wiring harness system (harness components sold separately)
RaceCapture app – included

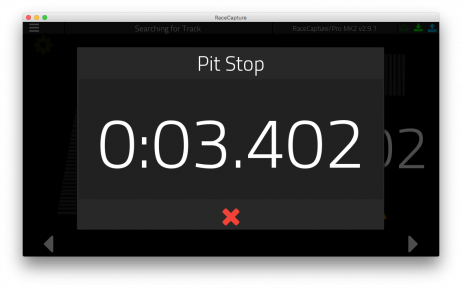

Create your own dashboard and feed your sensor data to the gauges you customize. Show predictive lap times with real-time +/- delta feedback vs. your best lap, and instantly review your laps right as you come off track. It’s all built-in to the RaceCapture app with user-friendly, touch optimized experience, and it’s easy to get set up and going!
The RaceCapture app works on the devices you love – with Android, iOS, Windows and OSX support. Monitor critical engine data in real time with your iPad or Android tablet standing right at your race car, or run it on a big screen with your Windows or OSX machine to analyze your lap data.
Easy dashboard presets
Get started quickly with one of our system-included pre-made dashboards, or import a dashboard shared by other racers like you!
Design your own!
Want the freedom to design your own dashboards? We have you covered. Design one from scratch or use any existing preset as a starting point
Dashboard alerts
Save your engine and more by creating alerts for any channel!
Visualizations for specialty sensors
Got special sensors, like tire and brake temperature? We have a dedicated view just for that.
Built in analysis features
Instantly review your laps and runs with the built-in, touch-optimized analysis capabilities – right on your Android or iOS device, or on the big screen (Windows, OSX, and Linux supported)
Wireless everything
WiFi and Bluetooth 2.0 are integrated onboard for connectivity to the RaceCapture app on Android and iOS.
Optional cellular telemetry
The optional on-board, high performance, worldwide-capable 4G LTE cellular telemetry provides real-time streaming of telemetry data to the Podium cloud platform. You can monitor engine sensor data, chassis data or perform real-time driver coaching on a lap-by-lap basis – to the pits or anywhere in the world. Visit http://podium.live for details.
The built-in module also works with many cellular carriers, including:
| Country | Carrier |
|---|---|
| USA | Verizon, AT&T, T-Mobile, FreedomPop |
| UK | O2, Tesco, Three |
| EU | Lycamobile |
| Australia | Telstra |
| Canada | Rogers |
| Brazil | Claro, Vivo |
High performance 25Hz multi-constellation GNSS
An internal GNSS module provides ultra quad-constellation (GPS, GLONASS, BeiDou, Galileo) with sample rates at 1/5/10/25 Hz. Position, speed, altitude, distance and GPS statistics are included.
Predictive lap timing
100’s of tracks available worldwide combined with on-board predictive lap timing provides real-time feedback to the driver.

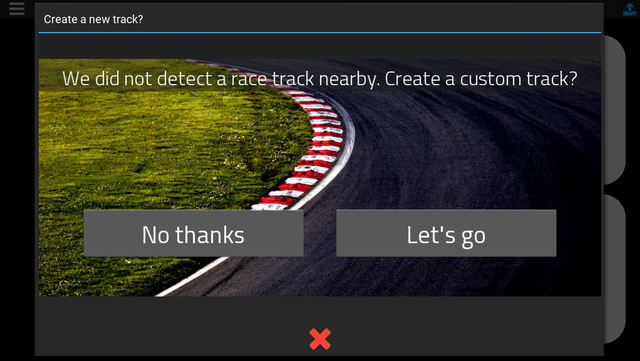

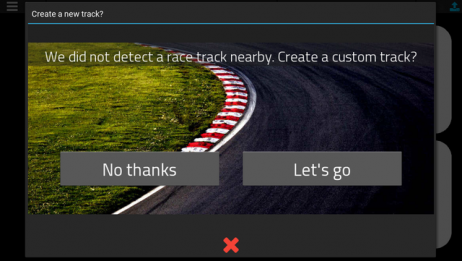

With the included interactive track map builder you can be assured you can roll up to your favorite track and get the lap times and statistics you need.
6 axis accelerometer + gyro
Get 3-axis G-force plus Yaw / Pitch and Roll using the on-board high performance 6 axis Inertial Measurement Unit (IMU) – use it to analyze peak cornering G’s, or detect oversteer / understeer situations.
Dual CAN bus
Two CAN 2.0 compliant channels are available, providing baud rates up to 1MBPS. CAN bus data can be mapped to channels using built in OBD-II, direct CAN channel mapping, or custom logic mapping via Lua scripting. Both CAN channels are available on the M8 connector, ready for our plug and play harness system.
A RaceCapture exclusive: with a flip of a switch in the RaceCapture App you can enable or disable built-in CAN termination – no external resistors to add, switches to flip, or jumpers to set.
Powerful ECU integration with presets
In addition to CAN OBDII support, RaceCapture/Pro MK3 also supports mapping of channels from CAN data streams, allowing direct integration with CAN enabled ECU such as Motec, Link, AEM, Megasquirt – including direct integration to OEM-specific CAN networks, such as found on the BMW E46. You’ll be able to map data from two different CAN bus channels for maximum flexibility.
Analog, digital, and GPIO output capabilities
8 external 0-5v analog inputs with 12 bit ADC, 4 channel timers for measuring RPM or frequency and 4 general purpose I/O ports for low speed inputs or controlling outputs up to 1A. (open drain)
Onboard SD card logging
A micro-SD card slot is provided for on-board data acquisition file recording. 32GB SDHC cards are supported.
USB connectivity
A standard USB interface for direct connection for configuration, telemetry monitoring, and firmware upgrades.
GoPro™ camera control
Use the built-in WiFi capabilities to control a WiFi enabled GoPro camera using a speed-based trigger, allowing precise synchronization between data and video.
Extensibility through Lua scripting
Design your own custom behaviors using the simple on-board Lua scripting. Trigger a fan or pump based on sensor readings, activate warning lights, create real-time calculated channels, communicate with ECUs and other devices using CAN and RS232 serial communications. The sky’s the limit!
Included in the package
- RaceCapture/Pro MK4 system
- Power + CAN1 data pigtail
- External magnetic mount GNSS antenna
- Roof mount cellular antenna (if optioned cellular telemetry)
- USB cable
- Quick start guide
Note: harness components are sold separately; see our Plug and Play harness guide to design the harness that matches your needs
Specifications
| Sensors | |
| Analog Inputs | |
| Channels | 9 (8 external + 1 internal battery/supply voltage) |
| Voltage range | 0-5v |
| Input impedance | Greater than 1M ohm |
| Voltage Protection | 400v (intermittent) |
| ADC precision | 12 bit |
| Maximum sample rate | 1000Hz |
| Mapping | Raw / linear formula / interpolated map |
| Digital I/O | |
| Channels | 4 |
| Output mode type | Open Drain |
| Output current capacity | 1A, inductively clamped |
| Input mode voltage range | 0-12v |
| Input voltage protection | 0-40v |
| Maximum sample rate | 1000Hz |
| Timer inputs (RPM / Frequency) | |
| Channels | 4 |
| Voltage Protection | 400v (intermittent) |
| Maximum sample rate | 1000Hz |
| Mapping | RPM, Frequency |
| Voltage Reference | |
| Output Voltage / Capacity | 5v / 500mA |
| CAN Bus | |
| CAN Channels | 2 |
| CAN baud rate | 125K, 250K, 500K, 1M Baud |
| CAN filters | 14 per channel |
| Protocol Support | OBDII PID, custom CAN mapping |
| CAN Bus | CAN 2.0 compatible, 1M baud |
| CAN termination | Software controlled |
| Cellular Telemetry (Optional) | |
| Cellular | 4G LTE (North America and worldwide) |
| Maximum Sample Rate | 10Hz |
| Wireless | |
| WiFi | 802.11bgn |
| WiFi Modes | Access Point, Infrastructure |
| Bluetooth | Bluetooth 2.0 EDR |
| Maximum Sample Rate | 50Hz (Bluetooth and WiFi) |
| GPS | |
| GPS Type | External active antenna |
| Sample Rates supported | 1 / 5 / 10 / 25Hz |
| GPS accuracy | 2.5M CEP |
| Inertial Motion Unit | |
| Accelerometer Channels | 3 (X/Y/Z) (2G, 4G capable) |
| Gyro Channels | 3 (Yaw/Pitch/Roll) (1000 degrees/sec) |
| Storage | |
| Micro SD | Up to 32GB (SDHC) |
| CAN bus direct mapping | 100 direct CAN mapping channels |
| Capabilities | |
| Channel Support | 200 |
| Predictive Lap Timing | Built-in |
| Track Mapping | Circuit and point-point |
| Track maps | 200 built in for autonomous auto-detection; unlimited via RaceCapture app with interactive track map builder |
| Sectors per track | 20 |
| Analysis | Included in the RaceCapture App |
| Export data format | Plain CSV |
| Physical | |
| Dimensions | 150 x 85 x 30mm (5.9 x 3.35 x 1.18in) |
| Temperature range | -40 to 85c |
| Environmental | Connectors: IP67 / enclosure IP51 |
| Weight | 255g (12 oz) |

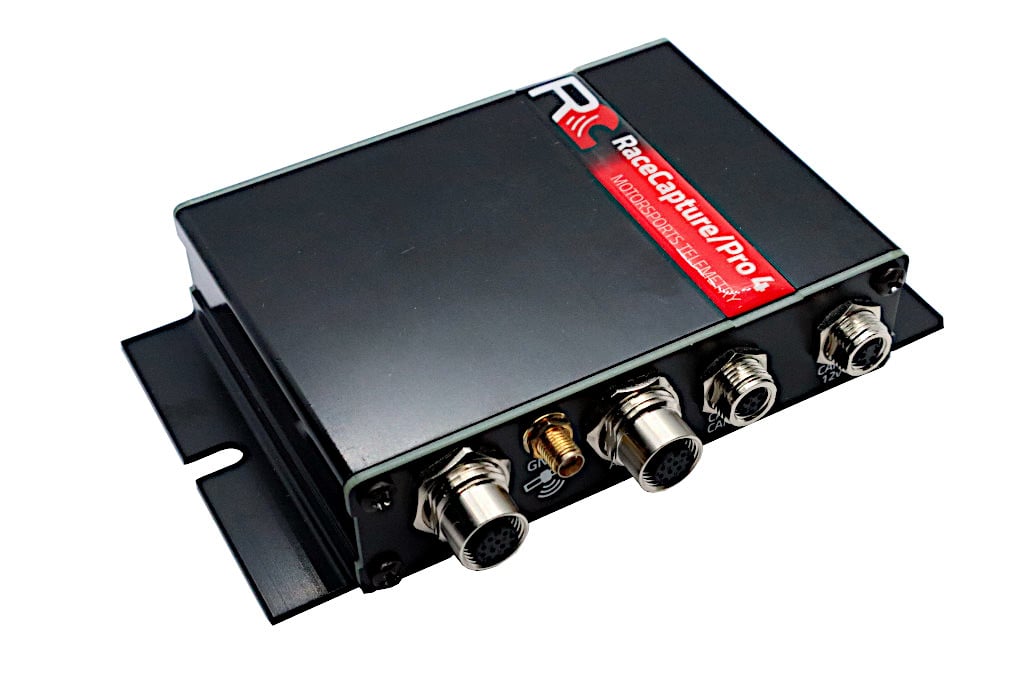

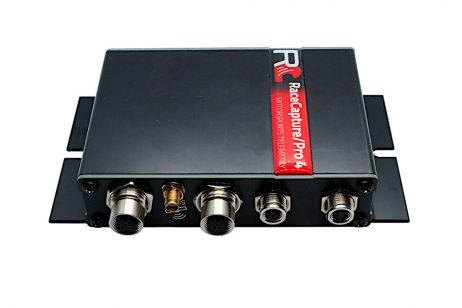

| Physical | M12 12P Female for Analog sensors M12 12P Female for Digital sensors M8 6P for CAN1/CAN2 data connection M8 4P for Power/CAN1 connection SMA for external GPS antenna RP-SMA for cellular antenna |
| Power Consumption (max) | Main System: 0.6W With Wireless: 1.6W With Cellular Telemetry: 8.6W With Cellular Telemetry and Wireless active: 9.6W |
