New Product – Linear temperature Sensor

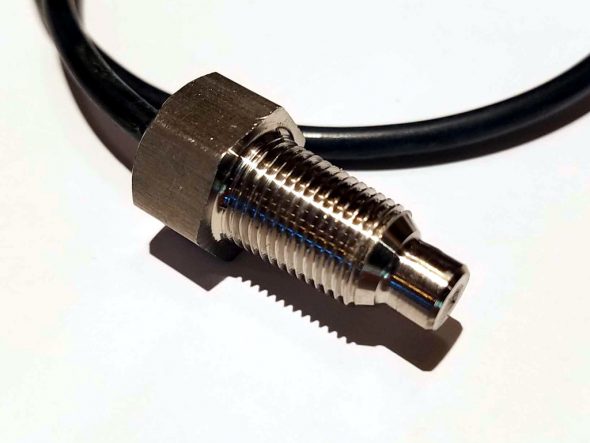

Our new linear temperature sensor requires no pull-up resistor and has a simple 10mV/C temperature response, great for CAN bus mapping as well as direct sensor integration. Order exclusively through our dealer network.

linear_temp_sensor_3quarter_close_1024

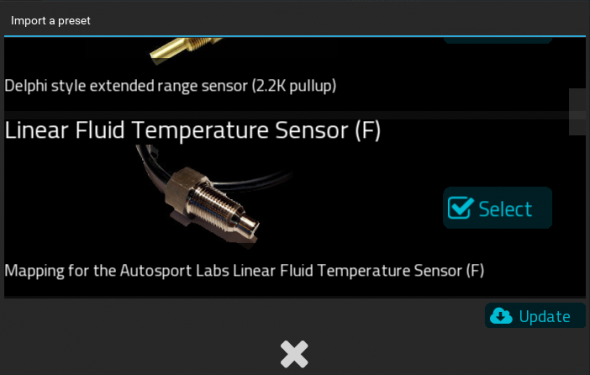

You can use the convenient preset for RaceCapture/Pro inputs – just 3 wires and you’re set.

autosport_labs_linear_temperature_sensor_preset

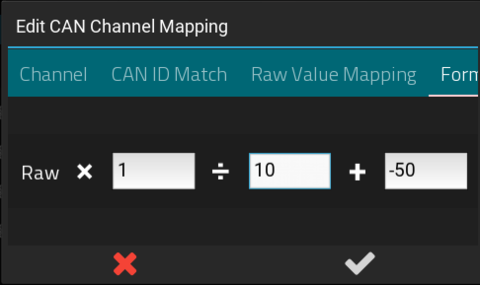

If you’re using AnalogX,  use the conversion formula in our wiki
480px-linear_temp_sensor_analogx_scaling



Specifications

Mechanical

  • Thread pitch: 1/8″ NPT
  • Body: Stainless Steel
  • 13mm (1/2″) hex head
  • Wiring: 18″ flying leads

Electrical

  • Voltage supply: 3-5V
  • Wiring color codes – Green: Ground; Red: 3-5V; Yellow: Signal Output
  • Pull-up resistor: None (Active element)
  • Operational temperature range: -40 to 150C
  • Calibration: Linear response 10mV/C; 0.5V at 0 degrees C
